Stamping Overview

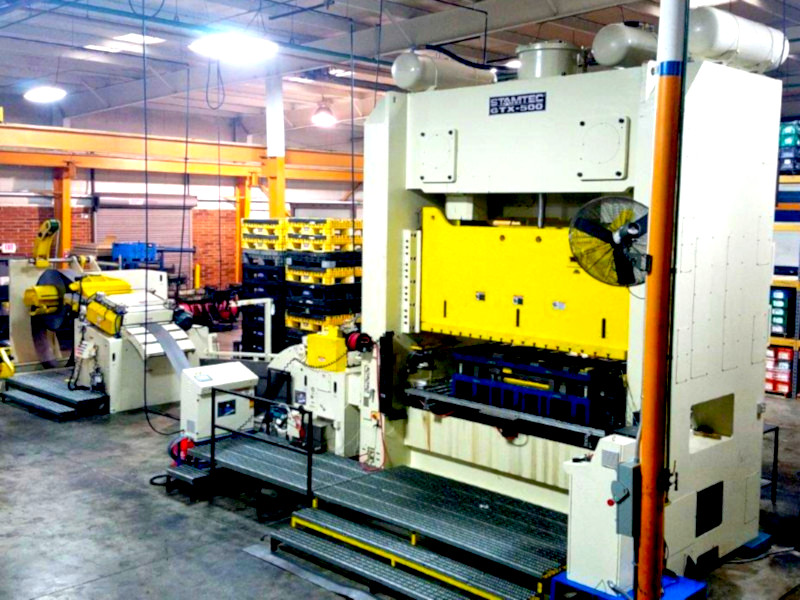

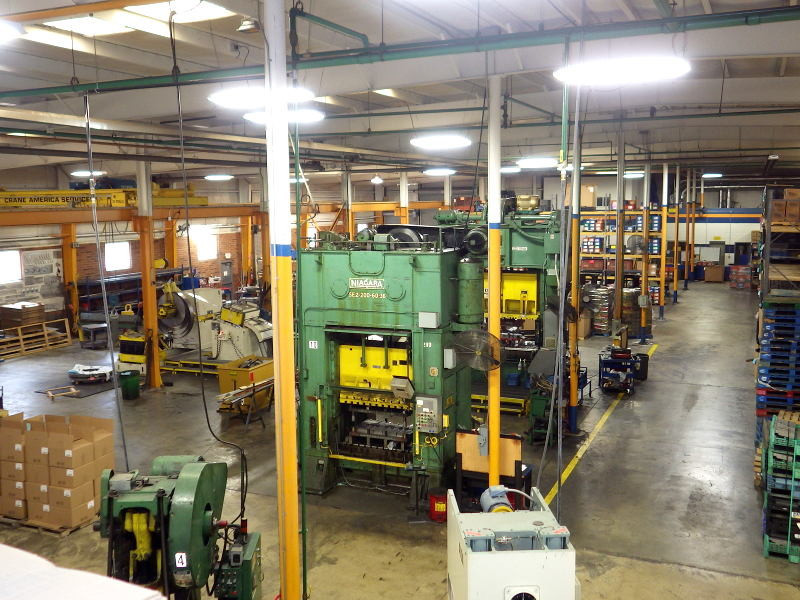

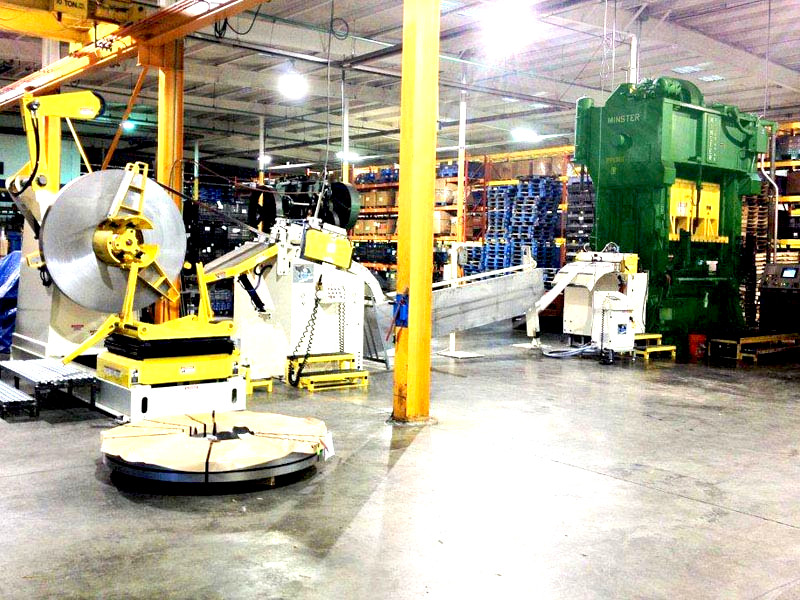

Exact Tool & Die, Inc.’s state-of-the-art manufacturing facility contains various metal stamping machines. Our stamping service covers over 50,000 square feet, and gives us the capability to produce stampings ranging from 30 to 550 tons, with a maximum bed size of up to 110 inches. Our press lines are equipped with electronic roll feed and advanced de-coiling systems that provide our customers with the accuracy and repeatability required in today’s competitive market.

Our stamping processes are integrated with an ERP system which enables us to better manage our machine capacities, adjust to changes in delivery forecasts, and accommodate unplanned shifts in demand from our customers.

Equipment List

  • 550 Ton Straight Side, (Bed 110” x 39”) - 35” Windows
  • 500 Ton Straight Side, (Bed 97” x 54”) - 43” Windows
  • 300 Ton Straight Side (Bed 84” x 48”) - 24” Windows
  • 200 Ton Straight Side (Bed 60” x 36”)
  • 165 Ton OBI (Bed 50” x 33”)
  • 121 Ton Straight Side (Bed 34” x 23”) - 24” Windows
  • 100 Ton Straight Side (Bed 60” x 36”) - 18” Windows (x2)
  • 88 Ton Gap Frame (Bed 39” x 21”) (x2)
  • 88 Ton Gap Frame (Bed 37” x 23”)
  • 75 Ton OBI (Bed 32” x 24”)
  • 56 Ton OBI (Bed 26” x 20”)
  • 22 Ton OBI (Bed 23” x 14”)
  • 20 Ton OBI (Bed 21” x 15.5”)
  • 10 Ton Over-Head Crane
  • Fork Lift capacity up to 25,000 lbs.
